[Research] k8s Reserved Resource for System (2021)

InfraResearch
SHEET
002
REV
2026-09-03
READ
2 MIN
LANG
EN
SYSTEM CARD5/7 FIELDS · DRAFTED FROM THE TEXT
01 RUNTIMEKubernetes 1.17 on 2 GCP Ubuntu 18.04 nodes (8cpu, 32GB) with Docker 18.06.2-ce and Calico 3.17
02 DATAunknown
03 MODELunknown
04 INTERFACEkubectl CLI, editing kubelet config files, systemctl
05 DECISIONLimit Kubernetes CPU and memory usage on host nodes using systemReserved options
06 FAILUREPods become pending due to limited resources; kubelet restart needed for config changes (dynamic config deprecated on 1.
07 COST · ENERGY8cpu, 32GB nodes; systemReserved cpu: 4000m/4, memory: 16Gi; kubeReserved cpu: 200m, memory: 2Gi
unknown ≠ n/a

bookmark

  • Needs : Using k8s cpu and memory resources not fully of host node

(Example : cpu 16, mem 32 → only use cpu 8, mem 16 for k8s)

Summary

  • We can use systemreserved options to limit k8s resources
  • use kubelet with dynamic config

🚧 It makes editable node resources, need very careful approach for this settings


Setup Test Environment

  • gcp nodes * 2, ( 8cpu, 32GB ) on ubuntu 18.04
  • docker version : 18.06.2-ce , using cgroup
  • kubernetes 1.17 kubeadm
sudo apt-get update
sudo apt-get install -y apt-transport-https ca-certificates curl

sudo curl -fsSLo /usr/share/keyrings/kubernetes-archive-keyring.gpg https://packages.cloud.google.com/apt/doc/apt-key.gpg

echo "deb [signed-by=/usr/share/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main" | sudo tee /etc/apt/sources.list.d/kubernetes.list

sudo apt-get update
sudo apt-get install -y kubelet=1.17.0-00 kubeadm=1.17.0-00 kubectl=1.17.0-00
sudo apt-mark hold kubelet kubeadm kubectl
  • swapoff
  • kubeadm init (master)
kubeadm init --pod-network-cidr=192.168.0.0/16

Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular
 user:
  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed
 at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following o
n each as root:
kubeadm join <control-plane-ip>:6443 --token <token> --discovery-token-ca-cert-hash sha256:<hash>
  • using calico
#calico 3.17 for kube 1.17
kubectl apply -f https://docs.projectcalico.org/archive/v3.17/manifests/calico.yaml
  • check node ready
kubectl get nodes
NAME                              STATUS   ROLES    AGE     VERSION
kube-reserve-compute-resource-1   Ready    master   12m     v1.17.0
kube-reserve-compute-resource-2   Ready    <none>   9m53s   v1.17.0

Test-1 : start kubelet with systemReserved options

Result-1 : Capacity is same, Allocatable is reduced

  • kubectl describe node
kubectl describe node kube-reserve-compute-resource-1

Capacity:
  cpu:                8
  ephemeral-storage:  9983232Ki
  hugepages-1Gi:      0
  hugepages-2Mi:      0:no
  memory:             32884412Ki
  pods:               110
Allocatable:
  cpu:                8
  ephemeral-storage:  9200546596
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32782012Ki
  pods:               110

kubectl describe node kube-reserve-compute-resource-2

Capacity:
  cpu:                8
  ephemeral-storage:  9983232Ki
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32884412Ki
  pods:               110
Allocatable:
  cpu:                8
  ephemeral-storage:  9200546596
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32782012Ki
  pods:               110
  • edit kubelet config in kube-reserve-compute-resource-1

(config path : /var/lib/kubelet/config.yaml)

apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s

cgroupDriver: systemd

clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

systemReserved:
  cpu: 4000m
  memory: 16Gi
kubeReserved:
  cpu: 200m
  memory: 2Gi
  • kubelet restart
kubectl drain kube-reserve-compute-resource-1 --ignore-daemonsets
systemctl stop kubelet
systemctl stop docker
vi /var/lib/kubelet/config.yaml
# edit above file
systemctl start docker
systemctl start kubelet
kubectl uncordon kube-reserve-compute-resource-1
  • kubectl describe node1
kubectl describe node kube-reserve-compute-resource-1
...
Capacity:
  cpu:                8
  ephemeral-storage:  9983232Ki
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32884412Ki
  pods:               110
Allocatable:
  cpu:
3800m

  ephemeral-storage:  9200546596
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             13907644Ki
  pods:               110
  • edit kubelet config in kube-reserve-compute-resource-2
vi config.yaml
..

systemReserved:
  cpu: "4"
  memory: 16Gi

kubectl drain kube-reserve-compute-resource-2 --ignore-daemonsets
systemctl stop kubelet
systemctl stop docker
vi /var/lib/kubelet/config.yaml
#edit above file
systemctl start docker
systemctl start kubelet
kubectl uncordon kube-reserve-compute-resource-2
  • kubectl describe node2
kubectl describe node kube-reserve-compute-resource-2

Capacity:
  cpu:                8
  ephemeral-storage:  9983232Ki
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32884420Ki
  pods:               110
Allocatable:

cpu:                4

  ephemeral-storage:  9200546596
  hugepages-1Gi:      0
  hugepages-2Mi:      0

memory:             16004804Ki

  pods:               110
  • create pod

1 cpu, 4Gi mem pod * 10 Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 10
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.14.2
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: "1"
            memory: "4Gi"
          limits:
            cpu: "1"
            memory: "4Gi"


→ setup master taint to schedule pod

kubectl taint nodes --all node-role.kubernetes.io/master-

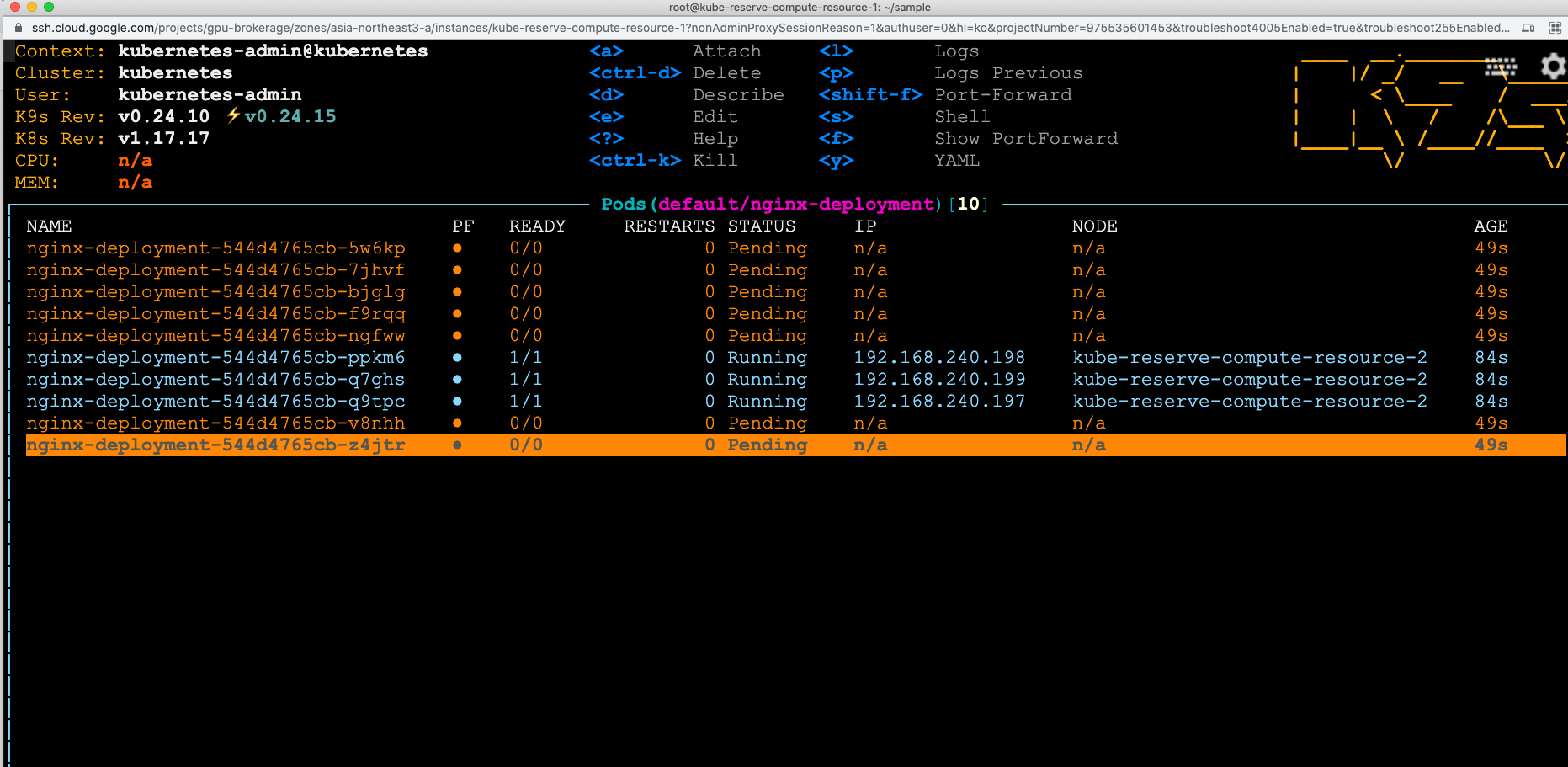

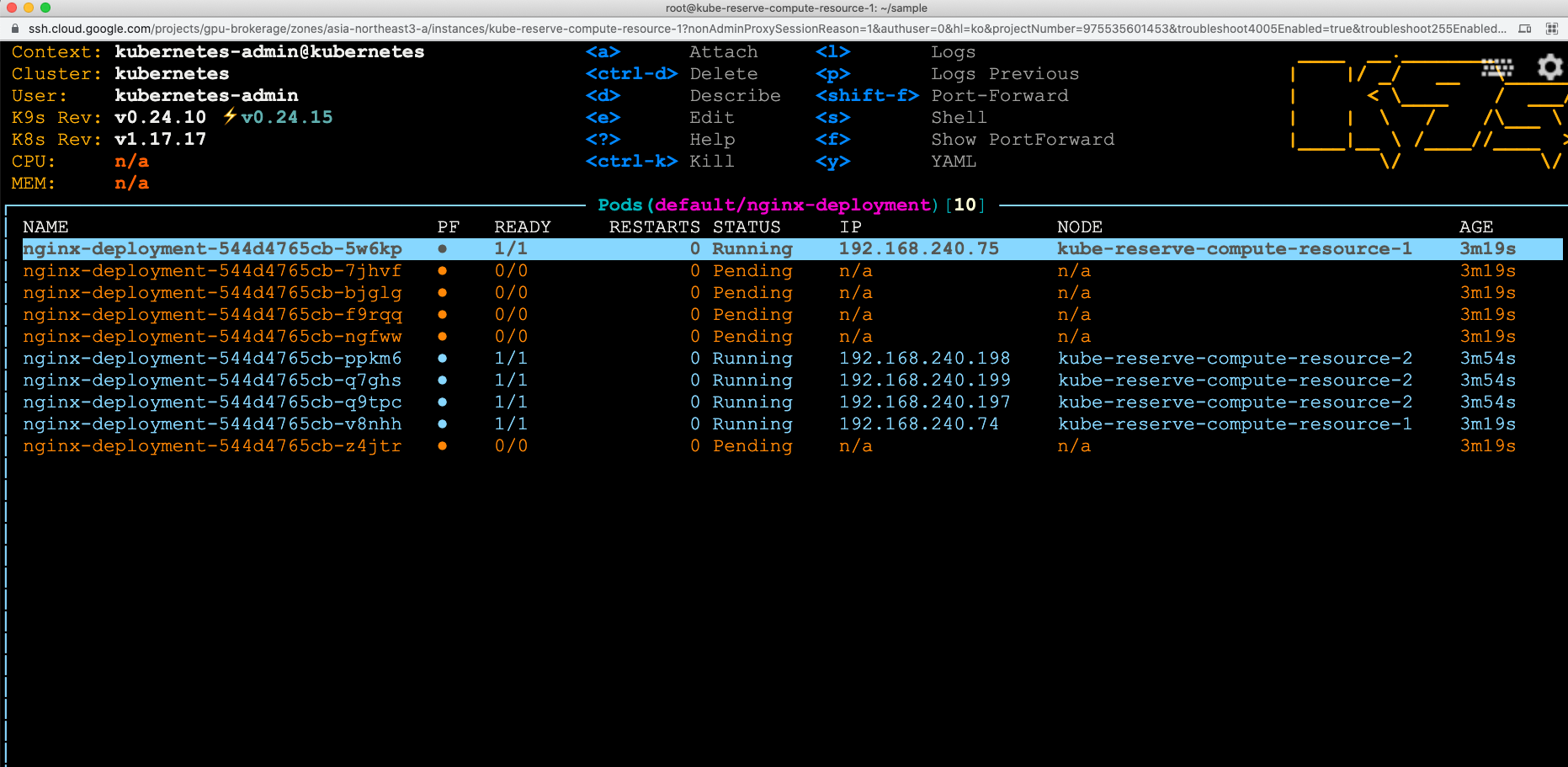

pod become pending because of limited resources


Test 1-1 : add reserved option without kubelet restart (for production node)

Result : It is not possible without restarting kubelet. ( It can be possible if kubelet is set as dynamic config options ) → Deprecated on 1.22

bookmark

→ Maybe we can do similar thing by below link

https://kubernetes.io/docs/tasks/administer-cluster/kubeadm/kubeadm-reconfigure/

  • edit kubelet service to use dynamic-config
cd /etc/systemd/system/kubelet.service.d

vi 10-kubeadm.conf
ExecStart=/usr/bin/kubelet
--dynamic-config-dir=/var/lib/kubelet-dynamic
 $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_KUBEADM_AR
GS $KUBELET_EXTRA_ARGS

:wq

systemctl daemon-reload
systemctl restart kubelet
  • extract configmap
kubectl get configmap -n kube-system
NAME                                 DATA   AGE
calico-config                        4      4h22m
coredns                              1      4h23m
extension-apiserver-authentication   6      4h23m
kube-proxy                           2      4h23m
kubeadm-config                       2      4h23m
kubelet-config-1.17                  1      4h23m

kubectl get configmap -n kube-system kubelet-config-1.17 -oyaml > kubelet-config-node2.yaml
  • edit configmap 하단 kind:Confimap 필드의 경우 빨간글씨 만 존재하여도 무방함)
4.apiVersion: v1
data:
  kubelet: |
...

	systemReserved:
      cpu: "4"
      memory: 16Gi
kind: ConfigMap
metadata:
  name: kubelet-config-node2 # 이름설정
  namespace: kube-system
  • create configmap
kubectl create -f kubelet-config-node2.yaml
> configmap/kubelet-config-node2 created
  • edit node to see new config
kubectl edit node kube-reserve-compute-resource-2

spec:

  configSource:
    configMap:
      kubeletConfigKey: kubelet
      name: kubelet-config-node2
      namespace: kube-system

  podCIDR: 192.168.1.0/24
  podCIDRs:
  - 192.168.1.0/24
  • wait a sec and can see Allocatable changed
kubectl describe nodes kube-reserve-compute-resource-2

...
Capacity:
  cpu:                8
  ephemeral-storage:  9983232Ki
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             32884420Ki
  pods:               110
Allocatable:
  cpu:                4
  ephemeral-storage:  9200546596
  hugepages-1Gi:      0
  hugepages-2Mi:      0
  memory:             16004804Ki
  pods:               110

...
Normal  KubeletConfigChanged     98s                kubelet, kube-reserve-compute-resource-2     Kubelet restarting to use /api/v1/names
paces/kube-system/configmaps/kubelet-config-node2, UID: f9cc30d5-ff15-4a02-a24d-abc21148e3dc, ResourceVersion: 39145, KubeletConfigKey: ku
belet
  Normal
NodeAllocatableEnforced
  87s                kubelet, kube-reserve-compute-resource-2     Updated Node Allocatable limit across p
ods
  Normal  Starting                 87s                kubelet, kube-reserve-compute-resource-2     Starting kubelet.

References

  • kubelet config

bookmark

Kube Reserved (over k8s 1.8 )

  • Kubelet Flag: -kube-reserved=[cpu=100m][,][memory=100Mi][,][ephemeral-storage=1Gi][,][pid=1000]
  • Kubelet Flag: -kube-reserved-cgroup=

System Reserved (over k8s 1.8 )

  • Kubelet Flag: -system-reserved=[cpu=100m][,][memory=100Mi][,][ephemeral-storage=1Gi][,][pid=1000]
  • Kubelet Flag: -system-reserved-cgroup=

Explicitly Reserved CPU List (over k8s 1.17) cpu isolation

FEATURE STATE: Kubernetes v1.17 [stable]

Kubelet Flag: --reserved-cpus=0-3

you can use this option to define the explicit cpuset for the system/kubernetes daemons as well as the interrupts/timers, so the rest CPUs on the system can be used exclusively for workloads:

Example Scenario

Here is an example to illustrate Node Allocatable computation:

  • Node has 32Gi of memory, 16 CPUs and 100Gi of Storage
  • -kube-reserved is set to cpu=1,memory=2Gi,ephemeral-storage=1Gi
  • -system-reserved is set to cpu=500m,memory=1Gi,ephemeral-storage=1Gi
  • -eviction-hard is set to memory.available<500Mi,nodefs.available<10%

dynamic configuration
